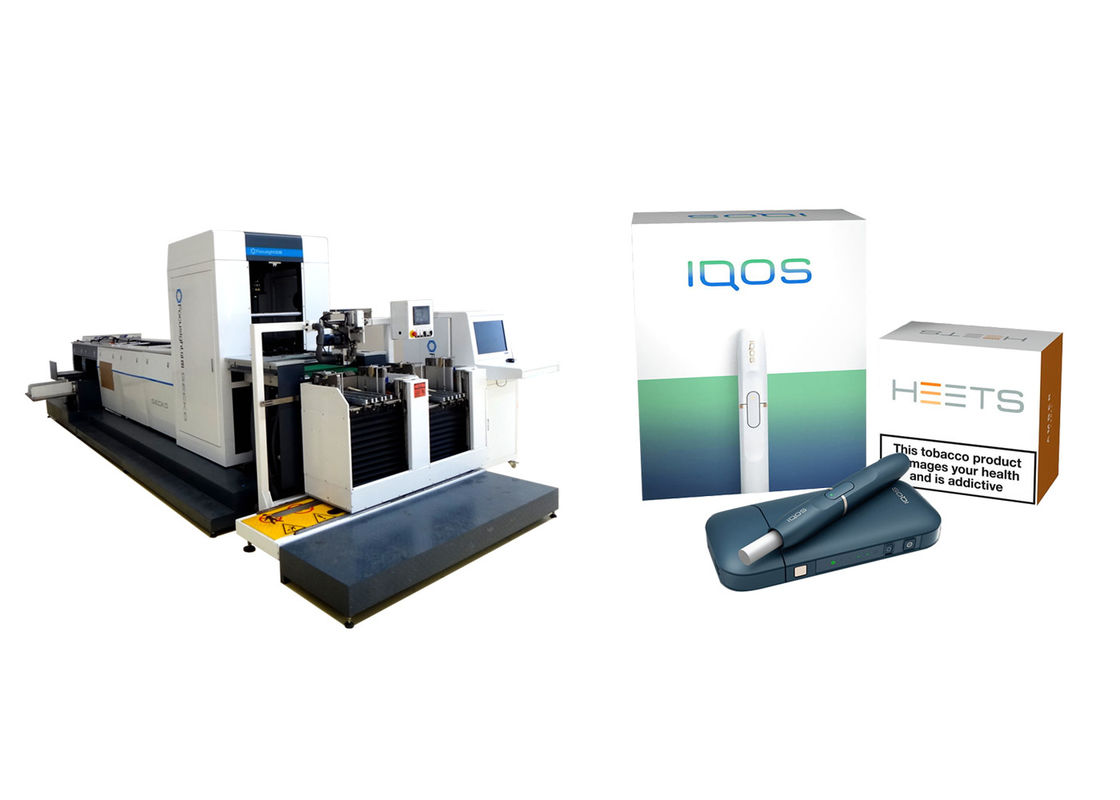

500mm Size Lamp Box Packaging Vision Systems With Fully Suction Platform

500mm Size Lamp Box Packaging Vision Systems With Fully Suction Platform

Product Details:

Place of Origin: China
Brand Name: FOCUSIGHT
Certification: ISO9001/CE
Model Number: FS-GECKO-500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 60 Days
Supply Ability: 20 Machines/Month
Get Best Price Contact Now

Detail Information

Maximum Size: 480mm × 420mm Minimum Size: 90mm × 90mm
Speed: 220m / Min Power: 15KW
Paper Weight: 90 ~ 350 GSM Machine Mechanical Size: 6680mm (L) × 2820mm (W) × 1985mm (H)
Machine Weight: 5Tons
High Light:

printing inspection machine

,

vision inspection equipment

Product Description

500mm Size Lamp Box Packaging Vision System with Fully Suction Platform





MODEL-FS-GECKO-500



Product Description


What: The Focusight Inspection Machine will precisely find out the defects of printing on presswork and reject the bad ones from the good ones automatically.
How: The Focusight cameras scan some good presswork as “STANDARD” and then while the rest of the printed jobs are inspected be scanned one by one and compared with the "STANDARD", any mal-printed or defective ones will be rejected automatically by the system. It detects every type of printing or finishing fault – color misregistration, color variations, hazing, misprints , defect in the text, spots, splashes, varnishing missing & misregistration, embossment missing & misregistration, laminating problems, die-cut problems, barcode problems,
Holographic Stripe, cure & cast and many other printing problems.



Technical Data



Project Function parameters
Maximum detection speed 220m / min 180m / min
Field of view 500mm
Maximum paper size Friction Feeder 480mm (Width) * 420mm (Length)
Suction Feeder 480mm (Width) * 420mm (Length)
Minimum paper size Friction Feeder 90mm (Width) * 90mm (Length)
Suction Feeder 90mm (Width) * 120mm (Length)
Adapt to paper weight 90 ~ 350g / ㎡ (paper weight> 195g)
Imaging accuracy (mm)

Direct Station Image Accuracy: 0.12mm * 0.12mm (4KCamera)

Oblique Station Image Accuracy: 0.06mm * 0.12mm (8KCamera)

Reflection Station image Accuracy: 0.06mm * 0.12mm (8KCamera) 220m / min

Reverse Station Image Accuracy: 0.13mm * 0.24mm (4KCamera)

Array Image Accuracy: 0.067mm * 0.067mm

Image Accuracy (mm)

Direct Station Image Accuracy: 0.12mm * 0.12mm (4KCamera)

Oblique Station Image Accuracy: 0.06mm * 0.12mm (8KCamera)

Reflection Station image Accuracy: 0.06mm * 0.12mm (8KCamera) 180m / min

Reverse Station Image Accuracy: 0.13mm * 0.24mm (4KCamera)

Array Image Accuracy: 0.067mm * 0.067mm

(Defect contrast of 40) defect detection routine
  1. Missing, dirty, etc. Defects Minimum detection area: Front ≥0.15 mm²;
  2. Overprint deviation detection: ≥0.15mm
  3. Die-cutting deviation detection: ≥ 0.15mm
  4. Pull line: can detect the width of more than vertical 0.15mm wide, or horizontal 0.2mm wide, length greater than 15mm, contrast greater than 40 horizontal or vertical cable;
  5. Local color detection ΔE≥3ΔELab
Bar Code Detection
  1. decoding type: QR code two-dimensional code error correction rate of not less than 15% detection error code, re-code, missing code;
  2. the size of the two-dimensional code / (21 + (version number -1) * 4) ≥ 0.38;
  3. two-dimensional code detection does not have the product phase detection function
Variable code detection (face array)
  1. Decoding type: QR code error detection code, re-code, dropout;
  2. The decoding Size: ≥8mm * 8mm (version is not greater than 6, the error correction rate of not less than 15%);
  3. includes a two-dimensional code cannot be detected with detection product;;
  4. Character reading> = 5 pounds, Document/Pharma font, non-dotted continuous character between the words without adhesion

Supports single and double line, alphanumeric or alphanumeric characters;
(Face array imaging one-dimensional code, two-dimensional code, characters, the need to 80mm * 60mm range)



0% Chance for Defected Cartons

  • High-grade printing Quality control for all types soft, easily scratch able folding cartons/cosmetics packaging/luxury boxes/phone box etc.
  • Up to three top cameras, one reverse side camera and area cameras
  • The unique lighting system enables the inspection of even highly reflective substrates
  • Focusight inspection machine allows you to offer your customers quality assurance for packaging products with high added value such as luxury goods and pharmaceuticals.
  • Focusight combines LED lighting technology and 4K or 8K camera system with high-performance data processing and image analysis software,
  • This technology checks the quality of carton blanks at a speed of up to 250 m/min.
  • It gives you reliable control of finishes such as hot foil application, holograms, embossings or coating patterns.

Object of Inspection (the kind of Detectable defects on Cartons)



DEFECT TYPE CAMERA TYPES
COLOUR CAMERA ANGLE CAMERA SURFACE CAMERA REVERSE CAMERA
PRINT MISS
DIE- CUT OUT
MIS-REGISTRATIONS
DARK SHADE
LIGHT SHADE
SHADE VARIATION
INK SCUM
DIRTY
WATER DRIPS
SMEARS
BARCODE
SET OFF
HICKEYS
SMUDGY PRINTING
PRINITING WASTE
SCRATCHES
INK SCRATCHES
FOIL MISS / OUT
BRAILLE MISS / OUT
EMBOSSING MISS / OUT
LAMINATION DEFECT
IMPROPER VARNISH
UV TEXTURE
WRINKLE DEFECT
FINGER MARK
HOLOGRAM FOIL DEFECT
REVERSE SIDE TEXT DEFECT
DUST OR INSECTS
CREASING LINE REVERSE SIDE
SCRATCHES IN BACKSIDE
REVERSE SIDE DIRT MARKS
Among them: can be checked, partially can be checked, can't be checked
