Prepress Proofing Inspection System, Can install all printing Press such as Ryobi, Heidelberg, Komori
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Delivery Time:||60 Days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||20 Per month|
|Maximum Inspection:||1040mmx720mm (customizable)||Speed:||15000sheets / Hour|
|Paper Type:||White Cardboard, Bond Paper, Aluminized Paper, Laser Paper, Etc||Paper Weight:||60 ～ 400 GSM|
Focusight Catalog Printing Inspection Machine & Quality Control Vision System
Model Number: FS-SWAN
What: The Focusight Inspection Machine will precisely find out the defects of printing on cartons and reject the bad ones from the good ones automatically at high speed.
How: The Focusight cameras scan some good cartons as “STANDARD” and then while the rest of the printed jobs are inspected be scanned one by one and compared with the “STANDARD”, any mal-printed or defective ones will be rejected automatically by the system. It detects every type of printing or finishing Defects like Color Misregistration, Color variations, Hazing, Misprints, Defect in the text, spots, splashes, varnishing missing & Misregistration, embossing missing & Misregistration, Laminating problems, Die-cut problems, Barcode problems, Holographic foil, cure & cast and many other printing problems.
- Good software usability, rapid modeling, wizard Settings, intuitive user interface, simple and clear
- Mixer can achieve 100% in any speed real-time 1: 1 undistorted detection (transverse and longitudinal resolution)
- In pieces and efficient detection can capture all the offset printing problems (simple, easy to use and powerful)
- Mixer set different areas of precision and can provide more flexibility
- Independent small character detection module, can detect tiny text individually
- The user access level, manage various quality set permissions
- Work pieces defects statistics report-archive and stacking product testing report with defect images
- Advanced blowing flattening system, prevent paper spin, in view of the paper thickness, air volume can be adjusted
- Pieces are put, such as printing, grounded for a variety of waste treatment scheme, meet different customers requirements
- Combined light source, white cardboard, bond paper, different materials, such as gold and silver paper
- Inspection Speed -15000sheets / hour
- Inspection Area-1040mmx720mm (customizable)
- Paper Thickness-60 ~ 400g / m2
- Paper Type-White cardboard, Bond Paper, Aluminized Paper, Laser Paper, etc
- Inspection resolution-0.126mm x 0.126mm
- Precision-Area of 0.1 mm or more squared (contrast≥30DN)
- Printing Defects Inspection-DarkWhite Spots, Mosquito marks, Drag Marks, Misregistration, color etc.
- Waste handling-Sound and light alarm
- The warranty of our machine is 12 months and service are available lifelong.
- Our expert will answer any inquiry within 24-48 hours, and it will be solved as soon as possible.
- We can send enough technicians to the Buyer's company for installation and testing the machines.
- We supply the complete technical documents and the relative drawings of the electric components which were written in English.
- 24 * 7 Online Support
Payment & Delivery
- Package: Plastic Package.
- Payment: By 30% T / T as deposit, 70% balance should be paid 10 days before shipment. Or 100% L / C at sight.
- Delivery: 60 days after we get the down payment.

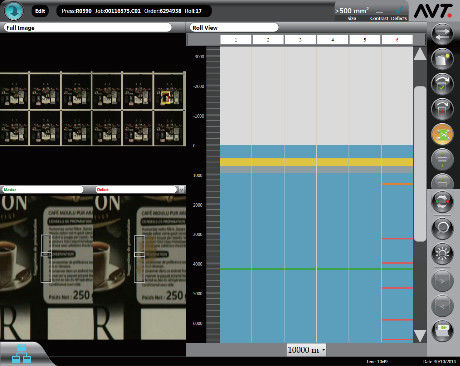

Pictures At Glance:
