Focusight Quality Control Vision Systems For Big Folding Corrugated Boxes Inspection
|Place of Origin:||China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1|
|Delivery Time:||60 Days|
|Supply Ability:||20 Machines/Month|
|Transportation Speed:||120m/min||Max Sheet Size:||1020mm * 1020mm|
|Min Sheet Size:||420mm * 300mm||Paper Weight:||200 ~ 500 GSM|
|Machine Size:||8000mm * 1780mm * 2400mm||Machine Weight:||6 Ton|
quality control machine,
quality control equipment
Focusight Control Vision System for Big Folding Corrugated Boxes Quality Inspection, For upto 1020mm Width Size Boxes

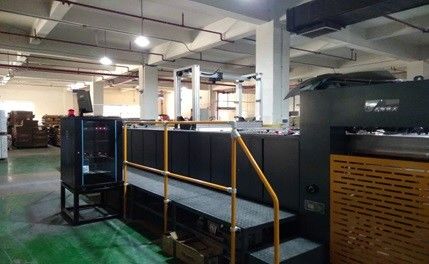

1020 BIG SHEET HIGH SPEED QUALITY INSPECTION MACHINE FS1020
What: The Focusight Inspection Machine will precisely find out the defects of printing on presswork and reject the bad ones from the good ones automatically.
How: The Focusight cameras scan some good presswork as “STANDARD” and then while the rest of the printed jobs are inspected be scanned one by one and compared with the “STANDARD”, any mal-printed or defective ones will be rejected automatically by the system. It detects every type of printing or finishing fault – color misregistration, color variations, hazing, misprints, defect in the text, spots, splashes, varnishing missing & misregistration, embossing missing & misregistration, laminating problems, die-cut problems, barcode problems, Holographic Stripe, cure & cast and many other printing problems.
kind of Detectable Objects on Big Sheet
Note : ( ★ Detectable; ☆ Partially Detectable; △ Undetectable )
|Applicable Presswork||FBB, SBS paperboard , Gold or Silver coated paperboard, Laser paperboard|
|Color Misregistration & Variation||★||★|
|Die Cutting Misregistration||★||★|
|Variable Barcode & QR code||★||★|
|Vanishing Missing / Scratch||△||★|
|Convex Oil Misregistration||△||★|
|Convex Oil Missing / Scratch||△||★|
|Embossing Mis registration||△||★|
Form 2: Performance Parameters of Inspection System
|Inspection FOV||1020mm (Width)|
|Imaging Resolution (mm)||
Front Imaging Resolution (Regular Printing Side): 0.14mm * 0.12mm (7k color camera)
Front Imaging Resolution (Laminating, Varnishing & Embossing Side): 0.126mm * 0.12mm (8k w / b camera)
|Regular Printing (when the defect contrast is over grade 40 )||
1. Minimum Inspection Area of Regular Defects, such as Printing Missing, Dirty Spot and stuff like that: ≥0.15 mm 2
2. Minimum Inspection Area of Foil Stamping Defects: ≥0.2mm 2
3. Print Misregistration Inspection: ≥0.2mm
4. Die Cutting Misregistration Inspection: ≥0.2mm
5. Gravure Blade Streak: vertical stripes with width over 0.1mm, and contrast over grade 40 are detectable
6. Local Color Difference Inspection ΔE≥3
Form 3 : Performance Parameters of Transportation Platform
|Max. Transportation Speed||120m / min (around 8000pc / hour)|
|Max. Sheet Dimension (W * L)||1020mm × 1020mm (1250mm customize)|
|Min. Sheet Dimension (W * L)||420mm × 300mm|
|Suggested Gram Weight||200 ～ 500g / ㎡|
|Total Mechanical Platform Dimension (L * W * H)||8000mm × 1780mm × 2400mm|
|Total Weight||6 Tons|
- Delivery Time
- The time of delivery to Shanghai Port shall be 80 days after receipt of down payment and technical approval both, which may be postponed accordingly due to the late payment, or delay of technical approval, or any amendment caused by the Buyer.
- Installation of the machine will be done by our engineers (one mechanical engineer and one software engineer). Installation and training is free of charge and the whole period is about 16 working days.
- Customer is also responsible for hotel accommodation (3 star hotel), meals and local transportation for engineers.
- There is 1 year warranty (from the date of installation) on all parts, mechanical, electrical and software due to defect in manufacturing, except for consumable parts such as belts, rubber sucker, etc and if “accident” or mal-operation has occurred .
