15KW Tobacco Packaging Inspection Equipment With Pre - Loader Feature

Product Description

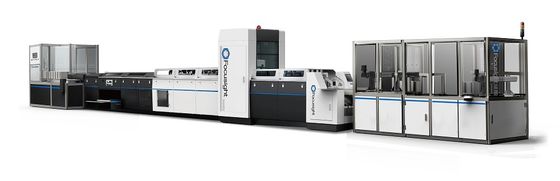

Focusight High Speed Tobacco Packaging Inspection Machine with Pre-loader Feature

FS-SHARK-500-PLUS

Cigarette Blank Automation Solution

What: The Focusight Inspection Machine will precisely find out the defects of printing on presswork and reject the bad ones from the good ones automatically.

How: The Focusight cameras scan some good presswork as “STANDARD” and then while the rest of the printed jobs are inspected be scanned one by one and compared with the “STANDARD”, any mal-printed or defective ones will be rejected automatically by the system. It detects every type of printing or finishing fault – color misregistration, color variations, hazing, misprints, defect in the text, spots, splashes, varnishing missing & misregistration, embossment missing & misregistration, laminating problems, die-cut problems, barcode problems, Holographic Stripe, cure & cast and many other printing problems.

Equipment Advantages

• Cigarette / pharmacy whole process defects checking, support Variable data inspection
• Whole line can work integrally also support working each machine separately
• Latest software, Automatic create template, easily study, more efficient
• Multi-spectral color measure with double reject collection bin to realize color sorting
• Highest speed 120000pieces / hour, two staff working, connection package, saves labor cost
• Auto binding machine connect inspection machine, also can working separate by manual loading

Technical Specification

Inspection Speed ​​250m / min

Inspection Area 90mm * 90mm – 500mm * 420mm

* Products with 650mm / 800mm width can choose suitable platform

Paper type White / gray cardboards, METPET Silver paper, Gold laser paper

Support Installation of 5 cameras at front

Front Cameras Inspection options:

Print quality Detection: Stripe, Ink spot, color variation, overprint, mis-printed

Post print quality detect: varnish, lamination, cast & cure, embossing, die-cut, scratch, foil, holograms

Variable data module: QR code, verification code data check, position and appearance defects

High color accuracy module: Installation multi-channel German camera

Reverse Camera: White / black CCD camera, dirty, mosquito spot, appearance defects

Mechanical Appearance – 18000mm * 4100mm * 2500mm

Additional options:

• Pre-auto feed unit – Pre-storage transmission paper, auto twist paper, auto equal gripping, auto feeding
• Multi collection unit – Color variation separate collection, big defects separate collection
• Auto binding unit – Accurate count, carton stacking, convenient package

Fousight Installations
