Powerful Label Inspection Machine 15000 Sheets With Intuitive User Interface

Powerful Label Inspection Machine 15000 Sheets With Intuitive User Interface

Product Details:

Place of Origin: China
Brand Name: FOCUSIGHT
Certification: ISO9001/CE
Model Number: FS-SWAN

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 60 Days
Supply Ability: 20 Machines/Month
Get Best Price Contact Now

Detail Information

Maximum Size: 1040mmx720mm (customizable) Speed: 15000sheets / Hour
Paper Type: White Cardboard, Bond Paper, Aluminized Paper, Laser Paper, Etc Paper Weight: 60 ~ 400 GSM
High Light:

printing inspection machine

,

quality control equipment

Product Description

Focusight Inspection Equipment For Label and Narrow Web, 1040mm x 720mm





FS-SWAN-Offset Online Inspection System



Technical Specifications

  • Inspection Speed-15000sheets / hour
  • Inspection Area-1040mmx720mm (customizable)
  • Paper Thickness-60 ~ 400g / m2
  • Paper Type-White cardboard, Bond Paper, Aluminized Paper, Laser Paper, etc
  • Inspection resolution- 0.126mm x 0.126mm
  • Precision Area-0.1 mm or more squared (contrast≥30DN)
  • Printing Defects Inspection-DarkWhite Spots, Mosquito marks, Drag Marks, Misregistration, color etc.
  • Waste handling-Sound and light alarm

Advantages

  • Mixer can achieve 100% in any speed real-time 1: 1 undistorted detection (transverse and longitudinal resolution)
  • Good software usability, rapid modeling, wizard Settings, intuitive user interface, simple and clear
  • In pieces and efficient detection can capture all the offset printing problems (simple, easy to use and powerful)
  • Mixer set different areas of precision and can provide more flexibility
  • Independent small character detection module, can detect tiny text individually
  • The user access level, manage various quality set permissions
  • Work pieces defects statistics report-archive and stacking product testing report with defect images
  • Advanced blowing flattening system, prevent paper spin, in view of the paper thickness, air volume can be adjusted
  • Pieces are put, such as printing, grounded for a variety of waste treatment scheme, meet different customers requirements.

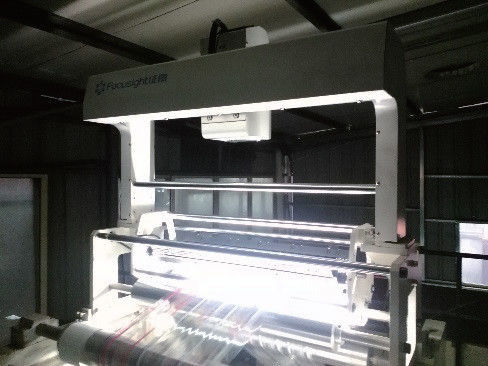

Focusight Pictures at Glance:



Powerful Label Inspection Machine 15000 Sheets With Intuitive User Interface 0Powerful Label Inspection Machine 15000 Sheets With Intuitive User Interface 1
