Upto Size  200mm With Labels Accurate Label  for Inspection Machine

Upto Size 200mm With Labels Accurate Label for Inspection Machine

Product Details:

Place of Origin: China
Brand Name: FOCUSIGHT
Certification: ISO9001/CE
Model Number: FS-GECKO-200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 60 Days
Supply Ability: 20 Machines/Month
Get Best Price Contact Now

Detail Information

Maximum Size: 200mm × 300mm Minimum Size: 40mm × 70mm
Speed: 150m/min Power: 10KW
Paper Weight: 150 ~ 350 GSM Machine Mechanical Size: 3650mm (L) × 1000mm (W) × 1500mm (H)
Machine Weight: 2Tons
High Light:

printing inspection machine

,

quality control equipment

Product Description

Focusight Automatic High Speed ​​Label Inspection System, for upto 200mm Width Labels





Product Technical Specifications — FS200-GECKO-P2N2



Machine Configuration



Product Name Product Model Paper Adaptability
Single sided Inspection Machine FS200-GECKO White card and paper



Machine configuration and function parameters



Product Type :



Type Product Type Description
Tag 3 or More Gray card and White card tags



Machine configuration



Content Configuration Details Qty Functions Description √ / X
Detection system configuration Positive Direct Station Imported high speed RGB color 4096 pixel Scan camera 1
  • Conventional printing defects
  • Die-cutting
  • Product code
Imported optical imaging lens 1
Dedicated strip light source 1
High-speed image processing computer workstation (including high-speed image acquisition processing card) 1
Front Oblique Station Imported high speed RGB color 4096 pixel Scan camera 1
  • Varnish biased, missing
  • Convex oil deviation missing
  • Embossing deviation
Imported optical imaging lens 1
Dedicated oblique light source 1
High-speed image processing computer workstation (including high-speed image acquisition processing card) 1
Reverse Direct Station Imported high speed RGB color 4096 pixel Scan camera 1
  • Conventional printing defects
  • Die-cutting
  • Product code
Imported optical imaging lens 1
Dedicated strip light source 1
High-speed image processing computer workstation (including high-speed image acquisition processing card) 1
Reverse Reflection Station Imported high speed RGB color 4096 pixel Scan camera 1
  • Convex oil deviation missing
  • Film bubble
Imported optical imaging lens 1
Dedicated Reflection light source 1
High-speed image processing computer workstation (including high-speed image acquisition processing card) 1
Detection software configuration Print inspection module dedicated visual inspection software FSCheck V2.1.1 1
Mixed detection module 1 Mixed Code
Defect detection statistics report 1 Document report that can count the types and quantities of defects
Testing Equipment Dedicated dust-removing sealed electric cabinet for printing inspection 1 Protect the detection device and it's parts from the dust
22" LCD monitor and keyboard mouse 1
Sound and light alarm device 1
Rear Display 1
  Mechanical Transmission Platform Structure Configuration Suction Feeder 1
Fish Scale Delivery 1
Fish Scale Rejection Type 1
Rejection Unit 1
Electrical System 1



Technical Parameters



Type Parameter
Max. Detection Speed 120m/min
Maximum Detection Size 28mm Suction Head 120mm(W) * 120mm(L)
90mm Suction Head 200mm(W)×200mm(L)
Minimum Detection size 28mm Suction Head 30mm(w)×50mm(L)
90mm Suction Head 120mm(W)×120mm(L)
Paper Weight 150~350g/㎡
FOV 220mm
Imaging Accuracy (mm)

Front imaging accuracy: 0.054mm * 0.075mm (4K camera)

Front imaging accuracy: 0.054mm * 0.15mm (4K camera)

Reverse imaging accuracy: 0.054mm * 0.075mm (4K camera)

Reverse imaging accuracy: 0.054mm * 0.15mm (4K camera)

Conventional defect detection (when the defect contrast is greater than 40)
  1. Minimum detection area for defects such as missed prints and dirty spots: ≥0.15 mm²
  2. Overprint deviation detection: ≥0.2mm
  3. Die cutting deviation detection: ≥0.2mm
  4. Cable: horizontal or vertical cable with width more than 0.1mm wide vertically or 0.2mm wide horizontally, length greater than 15mm, and contrast greater than 40 levels can be detected;
  5. Local color difference detection ΔE≥3ΔELab
Mechanical Dimension 4.4m × 2.1m × 1.49m (L * W * H) standard
Equipment Area 5m × 3m × 1.8m (L * W * H)
Weight 2 Ton
Total Power 10KW

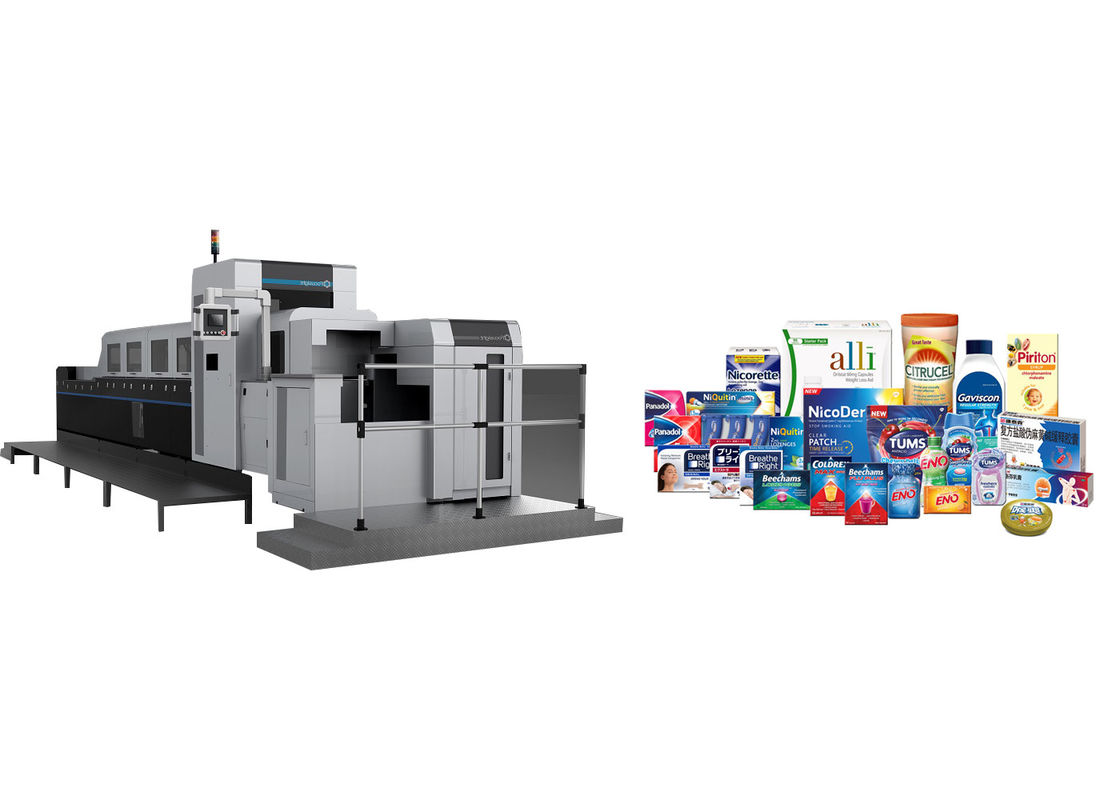

Focusight Pictures at Glance:
