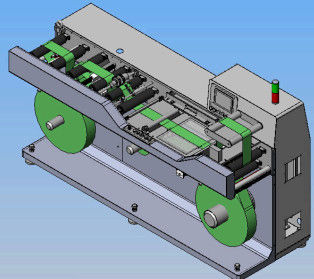

1.6 Tons Label Inspection Machine , Printing Inspection Machine 2600mm×1100mm×1700mm

1.6 Tons Label Inspection Machine , Printing Inspection Machine 2600mm×1100mm×1700mm

Product Details:

Place of Origin: China
Brand Name: FOCUSIGHT
Certification: ISO9001/CE
Model Number: FS-MAMBA-350

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 60 Days
Supply Ability: 20 Machines/Month
Get Best Price Contact Now

Detail Information

Name: Label Inspection Machine Feature: High Speed
Max. Sheet Width: 330mm Min. Sheet Width: 40mm
Mechanical Platform Dimension (L*W*H): 2600mm×1100mm×1700mm Total Weight: 1.6 Tons
High Light:

printing inspection machine

,

focusight inspection machine

Product Description

Focusight Automatic High-Speed Machine for Label Rollers Printing Inspection





Performance Parameters of Inspection System



Product Type

FS- MAMBA-350-P1 FS- MAMBA-350--P2
Inspection FOV 330mm (Width)
Imaging Resolution
(mm)
Color Camera: 0.08mm * 0.05mm or 0.08mm * 0.1mm (4K camera)
B / W Camera: 0.05mm * 0.05mm or 0.05mm * 0.1mm (8K camera)
when the defect
contrast is over
grade 40
-Vertical Resolution
to be 0.05mm
  1. Minimum Inspection Area of ​​Regular Defects, such as Printing,  Missing, Dirty Spot and stuff like that: ≥0.036mm
  2. Minimum Inspection Area of ​​Foil Stamping Defects : ≥0.036mm 2
  3. Print Misregistration Inspection: ≥0.036mm
  4. Die Cutting Misregistration Inspection: ≥0.036mm
  5. Gravure Blade Streak: vertical stripes with width over 0.1mm, and contrast over grade 40 are detectable
  6. Local Color Difference Inspection ΔE≥3
Regular Printing
(when the defect
contrast is over
grade 40
)
-Vertical Resolution
to be 0.1mm
  1. Minimum Inspection Area of Regular Defects, such as Printing Missing, Dirty Spot and stuff like that: ≥0.072 mm
  2. Minimum Inspection Area of Foil Stamping Defects: ≥0.072mm2
  3. Print Misregistration Inspection: ≥0.072mm
  4. Die Cutting Misregistration Inspection: ≥0.072mm
  5. Gravure Blade Streak: vertical stripes with width over 0.2mm, and contrast over grade 40 are detectable
  6. Local Color Difference Inspection ΔE≥3





Item Parameter
Max speed of Review and defect
selection
Tension adjust to product20N: 150m/min
Tension adjust to product
20N: 100m/min
Max. Inspection Speed Vertical Resolution to be 0.1mm:
120m/min- Such as Daily Health Products tag
Vertical Resolution to be 0.05mm:
60m/min- Such as Electronic tag
Max. Sheet Width 330mm
Min. Sheet Width 40mm
Mechanical Platform Dimension (L*W*H) 2600mm×1100mm×1700mm
Total Weight 1.6 Tons



Form 5: Performance Parameters of Option Platform FS-REVIEW-350

Item Parameter
Max speed of Review and defect
selection
Tension adjust to product20N: 150m/min
Tension adjust to product
20N: 100m/min
Max. Sheet Width 330mm
Min. Sheet Width 40mm
Mechanical Platform Dimension (L*W*H) 2500mm×1000mm×1800mm
Total Weight 1.6 Tons



Commercial Part


Delivery Time
The time of delivery to Shanghai Port shall be 60 days after receipt of down payment and technical approval both, which may be postponed accordingly due to the late payment, or delay of technical approval, or any amendment caused by the Buyer.


Installation
Installation of the machine will be done by our engineers (one mechanical engineer and one software engineer). Installation and training is free of charge and the whole period is about 16 working days.
Customer is also responsible for hotel accommodation (3 star hotel), meals and local
transportation for engineers.



Warranty
There is 1 year warranty (from the date of installation) on all parts, mechanical, electrical and software due to defect in manufacturing, except for consumable parts such as belts, rubber sucker, etc and if “accident” or mal-operation has occurred.
