Cosmetics Paper Packaging Surface Detection Equipment / Quality Control Machine

Cosmetics Paper Packaging Surface Detection Equipment / Quality Control Machine

Product Details:

Place of Origin: China
Brand Name: FOCUSIGHT
Certification: ISO9001/CE
Model Number: FS-GECKO-500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 60 Days
Supply Ability: 20 Machines/Month
Get Best Price Contact Now

Detail Information

Maximum Size: 480mm × 420mm Minimum Size: 90mm × 90mm
Speed: 250m/min Power: 15KW
Paper Weight: 90 ~ 350 GSM Machine Mechanical Size: 7140mm × 2300mm × 3377mm
Machine Weight: 3.5Tons
High Light:

quality control equipment

,

focusight inspection machine

Product Description

Focusight Cosmetics Paper Packaging Quality Control and Surface Detection Equipment





COSMETIC, ELECTRONICS AND FOOD BOX HIGH SPEED QUALITY INSPECTION MACHINE FS-GECKO-500



Product Type - FS-GECKO-500-P3N1



Product Description

What: The Focusight Inspection Machine will precisely find out the defects of printing on presswork and reject the bad ones from the good ones automatically.



How: The Focusight cameras scan some good presswork as “STANDARD” and then while the rest of the printed jobs are inspected be scanned one by one and compared with the “STANDARD”, any mal-printed or defective ones will be rejected automatically by the system. It detects every type of printing or finishing fault – color misregistration, color variations, hazing, misprints, defect in the text, spots, splashes, varnishing missing & misregistration, embossment missing & misregistration, laminating problems, die-cut problems, barcode problems, Holographic Stripe, cure & cast and many other printing problems.



Object of Inspection - Form 1: the kind of Detectable Objects on Cosmetic Blanks

Note : (Detectable; Partially Detectable; Undetectable )



Product Type

FS-500-GECKO

P2

FS-500-GECKO

P2N1

FS-500-GECKO

P3

FS-500-GECKO

P3N1

Applicable Presswork FBB, SBS paperboard, Offset paperboard, Coated free sheet paper, Gold or Silver coated paperboard, Laser paperboard
Regular Printing
Die Cutting Misregistration
Foil Stamping
Holographic Stripe
Cast and Cure
Laminating
Vanishing Misregistration
Vanishing Missing / Scratch
Embossing Mis registration
Some Silkscreen
Scratch
Reverse Side
Some Variable Bar Code and QR Code




Technical Parameter

Form 2: Performance Parameters of Inspection System

Product Type

FS-GECKO-500

P2

FS-GECKO-500

P2N1

FS-GECKO-500

P3

FS-GECKO-500

P3N1

Inspection FOV 500mm (Width)
Imaging Resolution (mm)

Front Imaging Resolution (Regular Printing Side): 0.12mm * 0.12mm

Front Imaging Resolution (Laminating & Embossing Side): 0.06mm * 0.12mm

Front Imaging Resolution (Silkscreen & Vanishing Side): 0.06mm * 0.12mm

Reverse Imaging Resolution: 0.12mm * 0.2mm

Variable Bar Code
  1. Code Reading: Wrong Code and Repeated Code; The height of Code should be not less than 28mm
  2. Series Number: Wrong Number and Repeated Number
  3. Appearance: Spot, Break Line, Set Off, Ink Pick, etc
  4. White and Black Line: The Line with 0.1mm width, 5mm length could be detected
When the defect contrast is over grade 40

1. Minimum Inspection Area of Regular Defects, such as Printing Missing, Dirty Spot and stuff like that: ≥0.15 mm2

2. Minimum Inspection Area of Foil Stamping Defects:≥0.2mm2

3. Print Misregistration Inspection: ≥0.2mm

4. Die Cutting Misregistration Inspection: ≥0.2mm

5. Gravure Blade Streak: vertical stripes with width over 0.1mm, and contrast over grade 20 are detectable

6. Local Color Difference Inspection ΔE≥3



Form 3: Performance Parameters of Transportation Platform



Item Parameter
Max. Transportation Speed 180m/min
Max. Inspection Speed 140m/min
Max. Sheet Dimension (W*L) 480mm×400mm
Min. Sheet Dimension (W*L)

120mm×120mm suction feeder

100*100 friction feeder

Suggested Gram Weight 150~400g/㎡
Total Mechanical Platform Dimension (L*W*H) 6880mm×3400mm×2240mm
Powel 15kw
Total Weight 4 Tons




Commercial Part



  1. Delivery Time
  • The time of delivery to Shanghai Port shall be 80 days after receipt of down payment and technical approval both, which may be postponed accordingly due to the late payment, or delay of technical approval, or any amendment caused by the Buyer.



  1. Installation
  • Installation of the machine will be done by our engineers (one mechanical engineer and one software engineer). Installation and training is free of charge and the whole period is about 16 working days.
  • Customer is also responsible for hotel accommodation (3 star hotel), meals and local transportation for engineers.



  1. Warranty
  • There is 1 year warranty (from the date of installation) on all parts, mechanical, electrical and software due to defect in manufacturing, except for consumable parts such as belts, rubber sucker, etc and if “accident” or mal-operation has occurred.

Pictures At Glance:

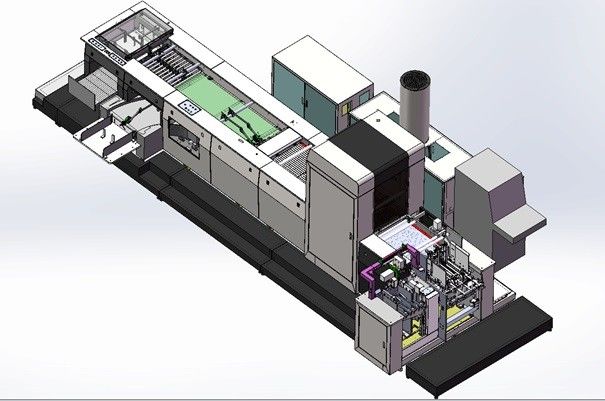

Cosmetics Paper Packaging Surface Detection Equipment / Quality Control Machine 0Cosmetics Paper Packaging Surface Detection Equipment / Quality Control Machine 1
