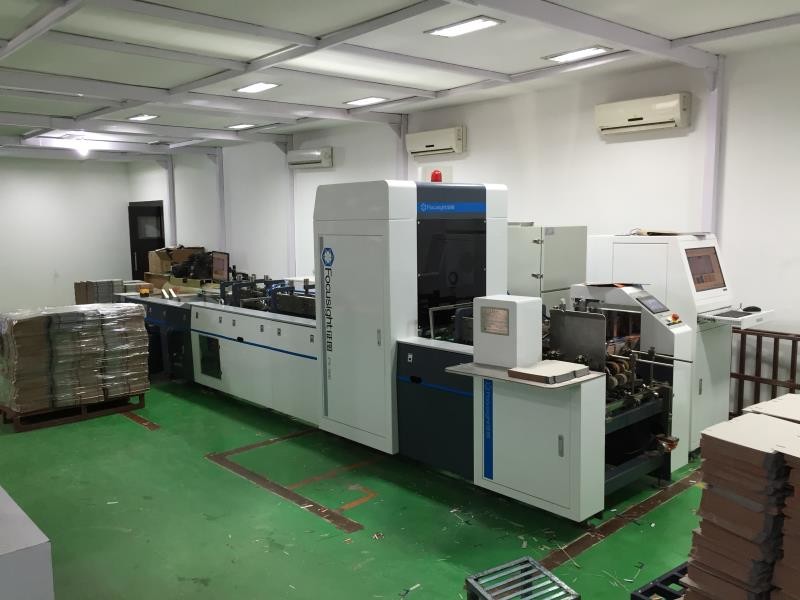

Grey & White Folding Cartons Printing Inspection Machine With these Size 6680mm × 2820mm × 1985mm

Grey & White Folding Cartons Printing Inspection Machine With these Size 6680mm × 2820mm × 1985mm

Product Details:

Place of Origin: China
Brand Name: FOCUSIGHT
Certification: ISO9001/CE
Model Number: FS-SHARK-500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood
Delivery Time: 60 Days
Payment Terms: L / C , T / T
Supply Ability: 20 Per Month
Get Best Price Contact Now

Detail Information

Maximum Size: 480mm × 420mm Minimum Size: 90mm × 90mm
Speed: 250m/min Power: 12KW
Paper Weight: 90 ~ 400 GSM Machine Mechanical Size: 6680mm (L) × 2820mm (W) × 1985mm (H)
Machine Weight: 3.5Tons
High Light:

printing inspection machine

,

vision inspection equipment

Product Description

Upto 500mm Size White & Grey Folding Cartons Printing Inspection Machine





Technical Specification

—FS500shark-P3A1N1

  • Device Appearance
Product Name Product Model Paper Type
Printing Quality Image Detection System V2.0 FS 500 Shark Gold, Silver & White Card





FS500shark Carton Transfer Platform







  • Machine configuration and function
  1. Acceptance of product type
Type Acceptance of the agreed number of species Name description
Box 3 or more Gray card, white card box

Accessories: Product images



2. Machine configuration

Project Name Configuration Instruction No. Functions Description
The Department of Detection & Measurement distribution series Front printing variable code detection station Exclusive German Imported color C4K CCD camera 1
  • conventional printing defects
  • die cut offset
  • hot gold hot silver bias, missing
  • two-dimensional code detection
Imported optical imaging lens 1
Dedicated dome light source, length 525mm. 1
High-speed image processing computer workstation (including high-speed image acquisition and processing card) 1
Positive Pressing Varnish Inspection Station Imported from England E2V high-speed 8K pixel line scan camera 1
  • Varnish deviation, missing
  • convex oil deviation, missing
  • embossed offset
Imported optical imaging lens 1
Dedicated oblique light source, the length of 525mm 1
High-speed image processing computer workstation (including high-speed image acquisition and processing card) 1



Positive film embossing detection station

Imported from England E2V high-speed 8K pixel line scan camera 1
  • film defects
  • Varnish defects
Imported optical imaging lens 1
Dedicated reflective light source, the length of 570mm 1
High-speed image processing computer workstation (including high-speed image acquisition and processing card) 1





Reverse detection station

Imported high-speed full-color 4kCCD camera 1
  • dead insects
  • reverse dirty
Imported optical imaging lens 1
Special light source, length of 525mm. 1
High-speed image processing computer workstation (including high-speed image acquisition and processing card) 1



Surface array

Face array camera and lens 1
  • two-dimensional code detection
  • re-code, wrong code, missing code
Special surface array light source 1
Detect software configuration Print Inspection Module for Visual Inspection Software FSCheck V2.0 1
Two-dimensional code detection module 1 Detection of re-code, error code, missing code



Defect Detection Statistical Report

1 The defects can be detected in the statistical type, data and other information
Detection equipment Dedicated printing detecting dust sealed cabinet 1 Protection of detection devices from dust
Industrial refrigeration and air conditioning 2 Protection of detection devices from process heat
22 inch LCD monitor and keyboard and mouse 1
Sound and light alarm device 1 Sound and light alarm when Error occurs
Rear Monitor 1
Mechanical platform Mechanical transmission platform structure configuration Friction feeder 1
Suction Feeder 1
Mix Feeder 1
Note: film and water-based varnish and other easy to scratch the sample is not within the scope of friction technology
Air blower 1 Remove paper wool, to avoid false inspection
Goods delivery structure 1

RFish Scale

☐Vertical paper pick-up

Waste collection Unit 1

☐Single Rejection

☐Double Rejection

High-speed pneumatic reject mechanism 1 RAir Rejection ☐Blow Rejection ☐Air + Blow
Electrical supporting system 1 Standardize operation
Strong electric part of the mechanical platform Germany SEW main motor 1 4KW supply main drive power
Germany SEW paper feed motor 1 1.5KW supply feeding transmission power
Air pump 1 2 sets of 4KW
Delivery Unit motor 1 0.4KW
Rejection Unit motor 1 0.4KW
Vibration motor 1 0.04KW

Note 1: This transmission system requires the user to provide centralized plant air or external air compressor for the device to remove the waste.

  1. Device functions parameters
Project Function Parameter
Maximum detention speed

220 m / min

180 m / min

Detection Area 480mm
Maximum paper size Friction 480mm(Width)*420mm(Length)
Suction 480mm(Width)*420mm(length)
Minimum paper size Friction 90mm (width) * 90mm (length)
Suction 90mm (width) * 120mm (length)
Paper adaptability

90 ~ 350g / ㎡

(on the suction paper weight is greater than 195g)

Max Detection accuracy (mm) Positive imaging accuracy (direct station): 0.117mm * 0.12mm (4K camera)
Positive imaging accuracy (oblique station): 0.058mm * 0.12mm (8K camera)
Positive imaging accuracy (reflection station): 0.058mm * 0.12mm (8K camera ) 220m / min
Negative imaging accuracy (reverse side): 0.14mm * 0.24mm (4K camera)
Face array imaging accuracy (area array): 0.067mm * 0.067mm
Min Detection accuracy (mm) Positive imaging accuracy (direct station): 0.117mm * 0.1mm (4K camera)
Positive imaging accuracy (oblique station): 0.058mm * 0.1mm (8K camera)
Positive imaging accuracy (reflection station): 0.058mm * 0.1mm (8K camera ) 180m / min
Negative imaging accuracy (reverse side): 0.14mm * 0.2mm (4K camera)
Face array imaging accuracy (area array): 0.067mm * 0.067mm
Conventional defect detection (when defect contrast is greater than 40)
  1. Leakage, dirty spots and other defects Minimum detection area: front ≥ 0.15 mm²;
  2. Overprint deviation detection: ≥ 0.15mm
  3. Die-cutting deviation detection: ≥ 0.15mm
  4. Pull line: can detect the width of more than vertical 0.15mm wide, or horizontal 0.2mm wide, length greater than 15mm, contrast greater than 40 horizontal or vertical cable;
  5. Local chromatic aberration detection ΔE≥3ΔELab
Bar code detection
  1. decoding type: QR code two-dimensional code error correction rate of not less than 15% detection error code, re-code, missing code;
  2. the size of two-dimensional code / (21 + (version number -1) * 4) ≥ 0.38:
  3. two-dimensional code detection does not have the product phase detection function;
Variable code detection (face array)
  1. De-coding type: QR code detection error code, re-code, missing code;
  2. De-coding size: ≥ 8mm * 8mm (version is not higher than 6, error correction rate of not less than 15%);
  3. Two-dimensional code detection does not have the product phase detection function;
  4. Character reading>= 5 pounds, Document / Pharma font, non-dotted consecutive characters between the words without adhesion, Supports single and double line, alphabetic, numeric or alphanumeric characters;
    (Face array imaging one-dimensional code, two-dimensional code, characters, the need to 80mm * 60mm range)



  1. Machine parameters
Platform configuration description
(Pre-accelerated detection, tick waste, fish scales transmission three sets of standard, this form omitted)
Machine dimensions
(Only host, not including strong cabinet, wind cabinet, test cabinet)
Length × width × height (mm)
Equipment area
(Only host, not including strong cabinet, wind cabinet, test cabinet)
Length × width (mm)
Machine weight (tons) Machine power KW
Friction feeder + Single rejection + Fish Scale delivery 6500×1700×2000 6500×3200 3 16
Friction feeder + Double rejection + Fish Scale delivery 8000×1700×2000 8000×3200 3.5 17
Friction feeder + Single rejection + Vertical delivery 7500×1700×2000 7500×3200 3.3 17
Friction feeder + Double rejection + Vertical delivery 9000×1700×2000 9000×3200 3.8 18
Suction feeder + Single rejection + Fish Scale delivery 6500×2550×2300 7300×3400 3.5 18
Suction feeder + Double rejection + Fish Scale delivery 8000×2550×2300 8800×3400 4 19
Suction feeder + Single rejection + Vertical delivery 7500×2550×2300 8300×3400 3.8 19
Suction feeder + Double rejection + Verticle delivery 9000×2550×2300 9800×3400 4.3 20
Mixed feeder + Single rejection + Fish Scale delivery 6500×2550×2300 7300×3400 3.5 19
Mixed feeder + Double rejection + Fish Scale delivery 8000×2550×2300 8800×3400 4 20
Mixed feeder + Single rejection + Vertical delivery 7500×2550×2300 8300×3400 3.8 20
Mixed feeder + Double rejection + Vertical delivery 9000×2550×2300 9800×3400 4.3 twenty one



  • Accessories & Service with equipment:-
  1. during the warranty period and the warranty period we provide 24 hours of telephone service;
  2. the production base in Changzhou, the number of 200 factories, services, faster response; 45 or so professional team, for customers to provide technical support to ensure that within 12 hours to reach the scene;
  3. to provide remote network software fault maintenance and remote network modeling;
  4. to provide a set of backup hard disk, if the IPC hard drive failure, the customer can immediately arrange the field operator to replace the whole,
    Our after-sales service staff to the scene after the diagnosis and maintenance, and then fill the relevant accessories to ensure that the customer's production will not be affected;



  • Installation requirements
    1. Unloading the first crane or forklift with the equipment from the truck unloaded, and then open the wooden box, be careful not to damage the shell;
    2. equipment can be used to move the overall forklift truck.



  1. When using the overall handling, please use 3 tons and 3 tons or more forklift;
  2. When the parts are disintegrated, please use at least 2 tons and more than 2 tons forklift:



  1. equipment around at least 500mm personnel channel;
  2. centralized gas supply or external air compressor, trachea diameter of at least 12mm, the output stability> 0.8Mpa pressure, 400mm width, 300g / ㎡ above the color box to be discarded output stability> 1Mpa pressure;
  3. machine with 3-phase 5-wire 380V / 50 / 60HZ power supply, the machine needs to ground, the total power of 15KW;
  4. Line requirements: greater than or equal to 10 square millimeters copper core cable.
  5. Use a circuit breaker greater than or equal to 60, and the inverter has high harmonics without the need for a secondary protector.
